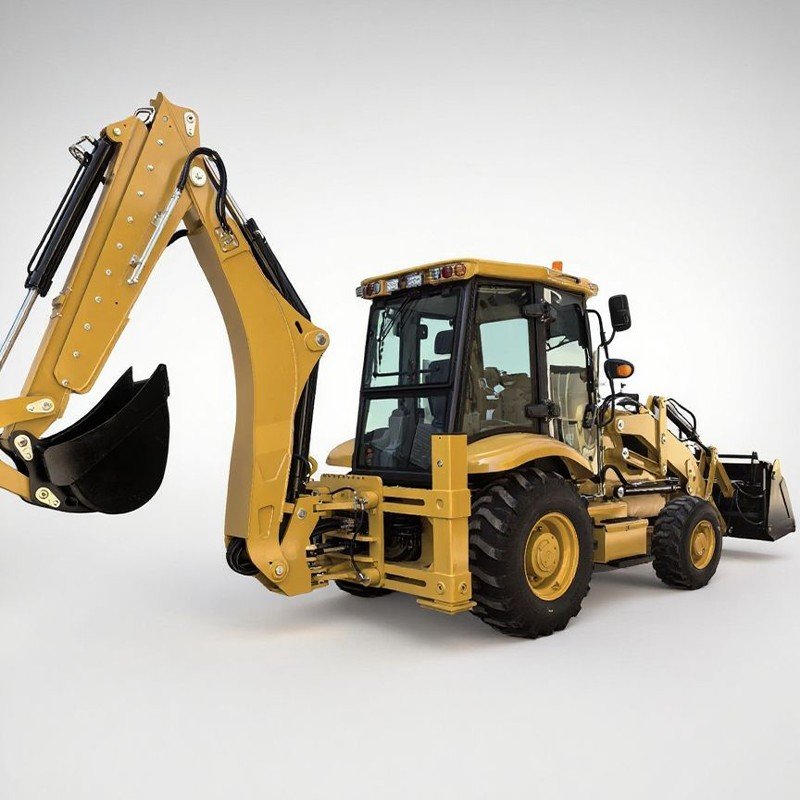

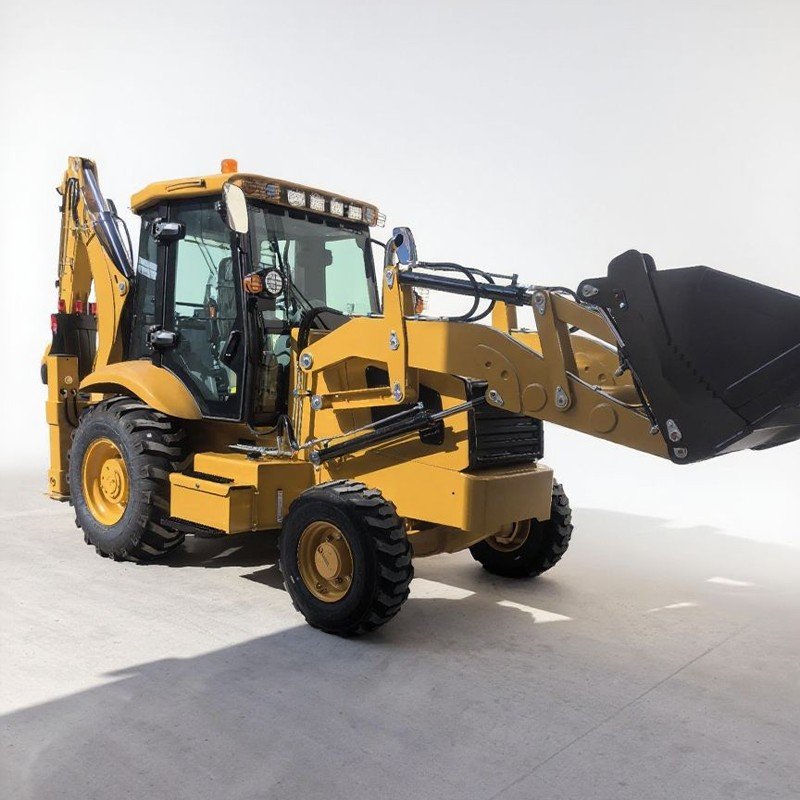

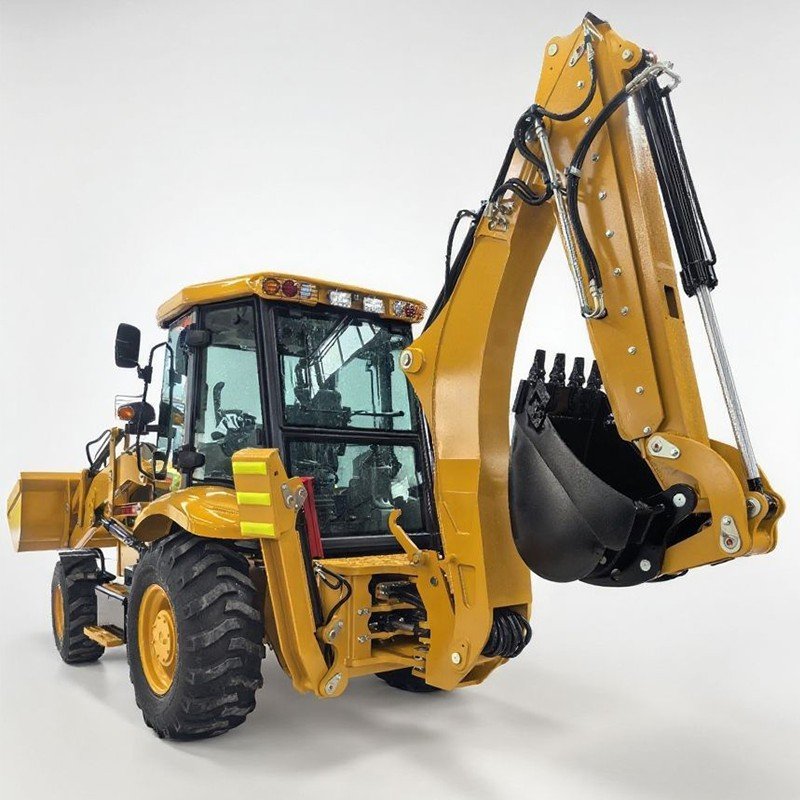

TW3CX Backhoe loader
worldwide:
ODM, OEM, customizable.
Color and model customization services are supported.
Discounted prices available for wholesale orders.
Manufacturers have inventory and provide fast delivery.
Customer support staff is online 24 hours a day to provide services.
Technical details
| Overall Operating Weight | 8000KG |
| Transport Dumension | |
| mmL*W*H | 7600×2260×2980mm |
| Wheelbase | 2250mm |
| Min.Ground Cleaarance | 300mm |
| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dnmoing Height | 2800mm |
| Bucket Dnmoing Distance | 1062mm |
| Backhoe Capacity | 0.3m3 |
| MAX.Digging Depth | 4100mm |
| Optional Digging Depth | 5000mm |
| Swing Angle of backhoe | 190° |
| Max. Pulling Force | 39KN |
| Type | In Line,Direct injection,Four-Stroke,WaterCooling |
| Rated Power | 85KW |
| Engine | CUMMINS 74KW 4BT3.9-C100 |
| Steering System | |
| Steering Angle | ±36° |
| Min.turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENGYUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Two Gears Ahead,Two Gears Ahead |
| Max. Speed | 30Km/h |
| Tyre | |
| Model | (F)14-17.5、（R）19.5L-24 |
| Pressure of Front Wheel | 0.22Mpa |
| Pressure of Back Wheel | 0.22Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-balance | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Termimating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4s |
| Bucket Lowering Time | 3.1s |
| Bucket Discharge Time | 2.0s |
| Packing Quantity(l*40HC) | 2Units |
