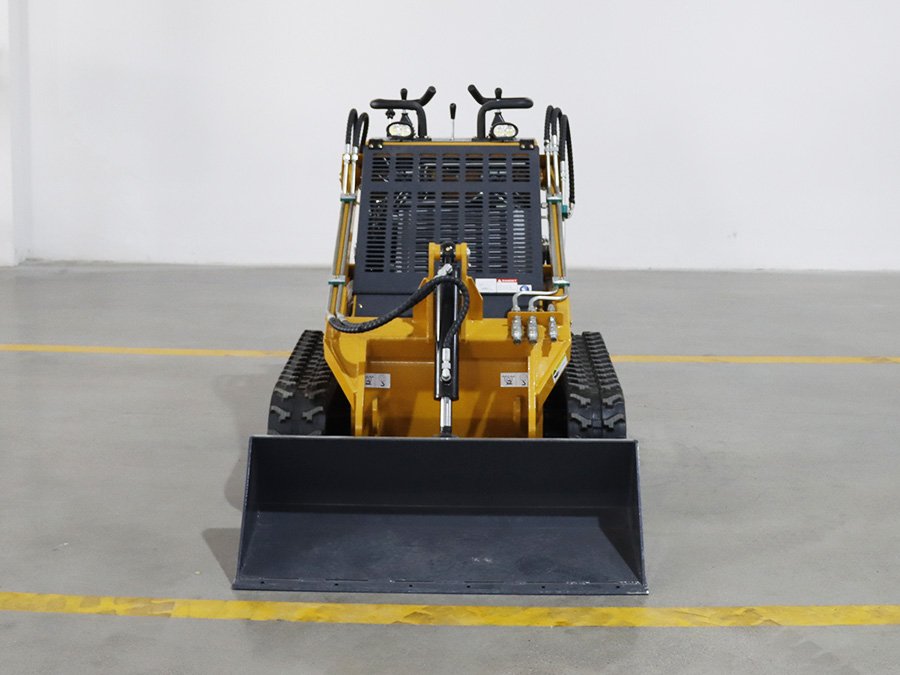

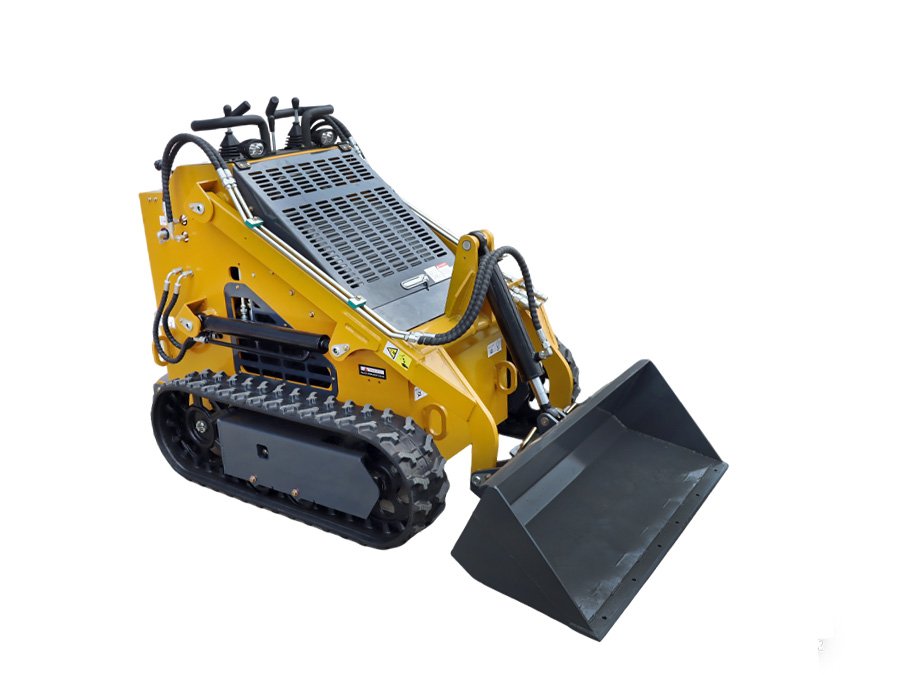

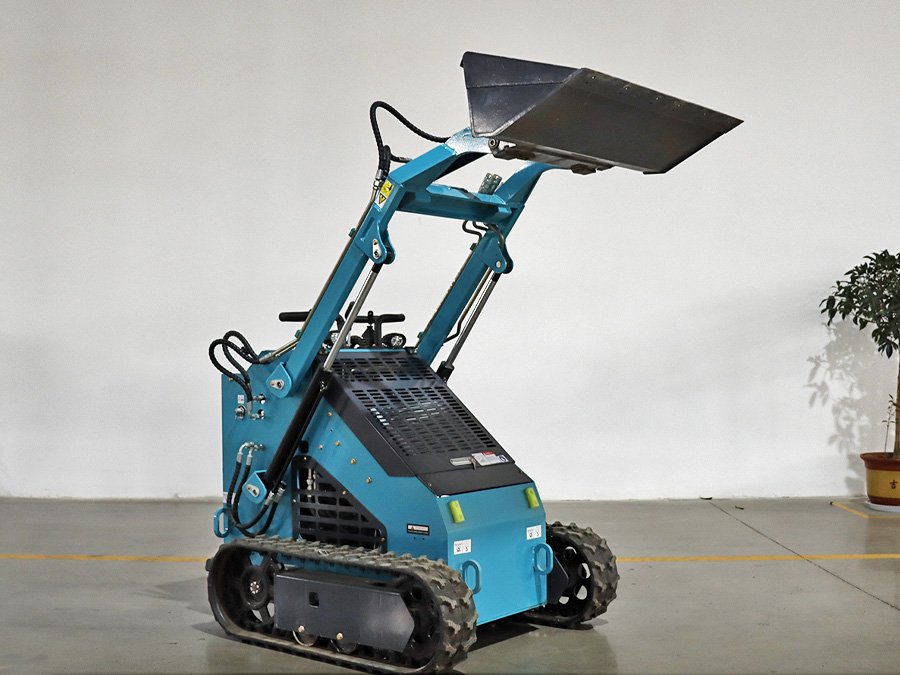

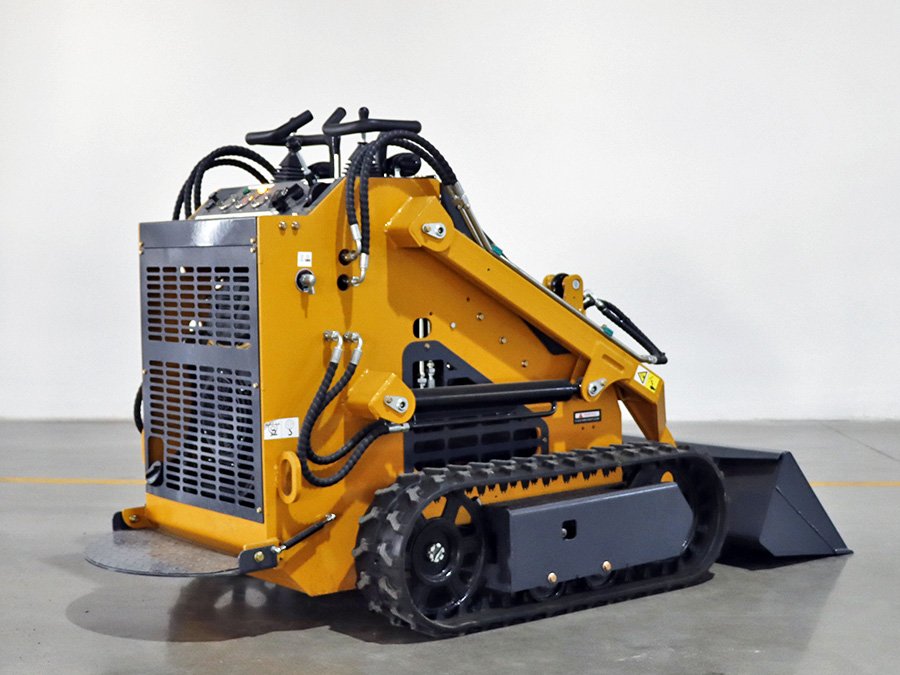

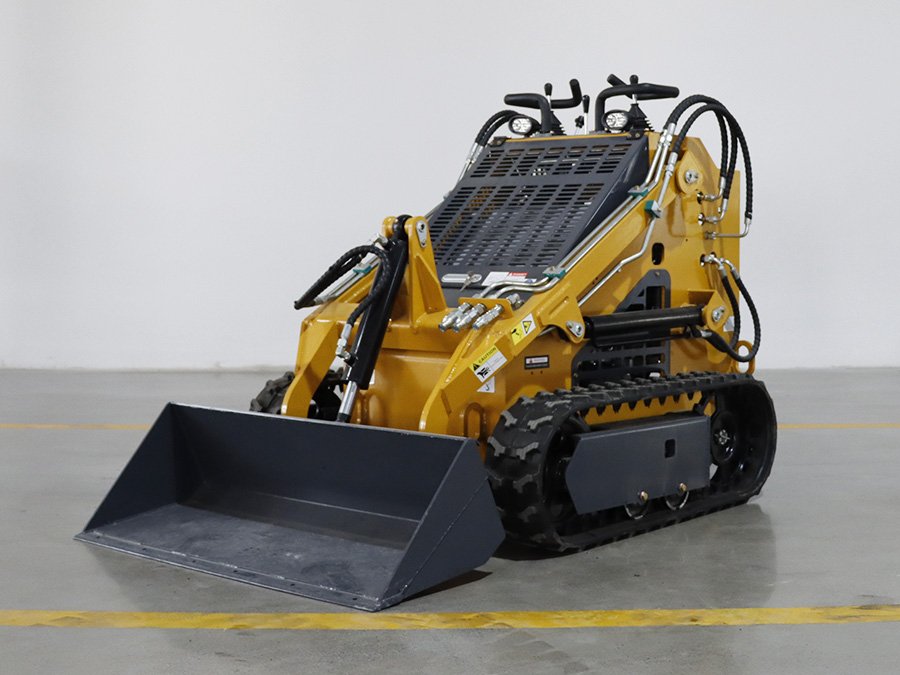

TW-490 Wheeled skid steer
Ultra-compact and flexible, allowing for seamless operation in confined spaces.All-terrain capability, highly adaptable to complex terrain
worldwide:
ODM, OEM, customizable.
Color and model customization services are supported.
Discounted prices available for wholesale orders.
Manufacturers have inventory and provide fast delivery.
Customer support staff is online 24 hours a day to provide services.
Technical details
he rear-mounted standing operating platform allows the operator to operate without obstruction from the cab, providing a 360° full field of vision over the work area, enabling precise obstacle avoidance and improving operational accuracy by 30%.
Its ultra-compact body allows it to easily pass through gates and narrow alleys, making it suitable for working in confined spaces such as indoor renovations, vineyards, and orange groves.
The tracked grounding design prevents vehicles from getting stuck or the soil from being compacted on soft ground (farmland, muddy ground), protecting lawns and crop roots.
It supports hydraulic quick-change attachments and is compatible with a variety of attachments such as buckets, breakers, augers, and log grapples, covering dozens of operations including excavation, crushing, fertilizing, sweeping, and material handling.
The maintenance components are conveniently arranged, and daily inspection and maintenance do not require professional tools. The failure rate is low, and the long-term use cost is more advantageous.
| Workload(kg) | 870 |
| Bucket capacity(m³) | 0.12 |
| Travelling speed(Km/h) | 3 |
| Maximum lifting force(Kg) | 220 |
| Max. working height(mm) | 2235 |
| Maximum unloading height(mm) | 1340 |
| Bucket unloading angle | 25 |
| Wheelbase H(mm) | 780 |
| Engine model | KOOP 292 |
| Maximum flow rate of spare oil pipe(L/min) | 65 |
| Horsepower hp | 23 |
| Main pump type/model | gear pump / bomba de engrenagem / bomba de engranajes |
| Rubber (bandwidth pitch pitch) | 180*72*37 |
| Tensioning form | hydraulic tension / tensionamento hidráulico / tensado hidráulico |
| Total length(mm) | 2250 |
| Total width(mm) | 1100 |
| Total height(mm) | 1260 |
